FMS-webMASTER

Data sheet (PDF)
CAD drawings

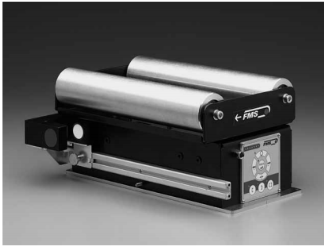

FMS-webMASTER BKS015 Ultra-compact Web Guide

The price - performance ratio of the BKS015 it’s hard to outgo for narrow web applications. The electronic control unit is integrated into the steering frame. The ultra-compact web guide provides enhanced material control for increased line speeds and improved quality. It is the ideal solution for existing as well as new narrow web production lines.

Features	Advantages
Sophisticated design	Cost effective web guiding solution
Integrated electronic unit	No additional wiring required
No programming required	Easy to setup, straight forward use
Compact and robust construction	Reliable and maintenance free operation

FMS-webMASTER BKS015 EE Web Guide with External Electronic

The BKS015 EE is the ideal solution for existing as well as new narrow web production lines. This ultra-compact and cost-consciously design with external electronic unit solves the most demanding mounting issues in your machine.

Features	Advantages
Sophisticated design	Cost effective web guiding solution
External electronic unit	Easy to operate also when the web guide is difficult to access
No programming required	Easy to setup, straight forward use
Compact and robust construction	Reliable and maintenance free operation

Data sheet (PDF)
CAD drawings

FMS-webMASTER 020

The steering frames of the FMSwebMASTER 020 series have been specifically developed for use in narrow web applications such as: label printing presses, small slitters and rewinders, film conversions, small packaging lines, etc. They are characterized by a compact and robust construction and are available with the controller integrated into the frame on either side.

Features	Advantages
Fast and precise positioning through powerful motor design	High precision at high machine speed
Roller length from 250 to 600mm	Specifically for narrow web application
Compact and robust design	Reliable and maintenance free operation

BKS020 Splice Table

Straightforward, rugged splicing table to handle all kind of material webs on the FMS webMASTER steering frames of the Series BKS020. The work bench is made of stainless steel with straight and diagonal tracks to support accurate straight and angular cuts.
The web is clamped over the rollers by means of pneumatic elements. As an option the splicing table can be equipped with a micro adjuster to precisely align the web in vertical direction (e.g. for the adjustment of label pattern).

Features	Advantages
Straightforward, rugged design	Reliable and maintenance free operation
Pneumatic material clamps	High ease of use
Straight and diagonal cutting aids	Accurate straight and angular cuts
Optionally equipped with micro adjuster	Precise adjustment of label pattern

Data sheet (PDF)
CAD drawings

FMS-webMASTER 040

The steering frame FMS-webMASTER 040 offers many possibilities thanks to the modular design. It is therefore suitable for all types of machines. It is characterized by a compact and robust construction. The sensors are mounted to the steering frame using a manual or motorized sensor adjustment.
